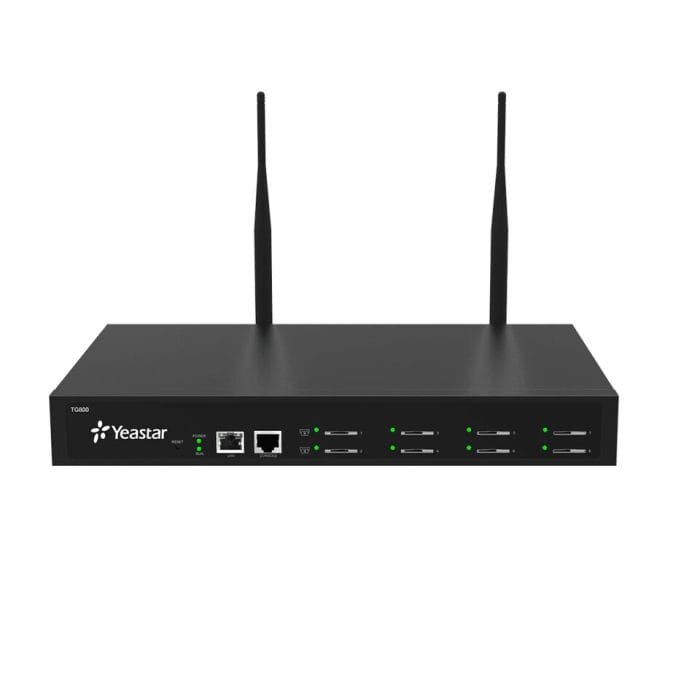

Yeastar NeoGate TG800 GSM Gateway

Description

NeoGate TG800 is a powerful VoIP GSM gateway with 8 channels, bridging between GSM network and IP-based systems. Designed to slash the cost of telephone calls, it can find the cheapest route and use the most economical SIM card.

Benefits

• Cost Savings – Save phone bills tremendously with mobile-to-mobile calls and LCR.
• Back up – Work as a cost-effective backup when the landline network goes down.
• Easy to install – Everything can be easily set up in the Web based management interface.
• Easy to integrate – High compatibility with major IP PBX and softswitch brands.

Specifications

• Number of GSM channels (Max): 8
• Network type: 850/900/1800/1900MHz
• Protocol:SIP (RFC3261), IAX2
• Transport Protocol: UDP,TCP,TLS,SRTP
• DTMF: RFC2833, SIP INFO, In-band
• Codec:G.711 a/u-law, G.722, G.726, G.729a, GSM, ADPCM, Speex
• Echo Cancellation: ITU-T G.168 LEC
• LAN: 1 (10/100Mbps)
• Network: Static IP, DHCP Client, Firewall, VLAN, DDNS, QoS, OpenVPN
• NAT Traversal: Static NAT, STUN
• Size:340x210x44mm
• Power Supply: AC 100~240V/50~60Hz (1.5A Max)
• Operation Range:0°C to 40°C, 32°F to 104° F
• Storage Range: -20°C to 65°C, -4°F to 149° F
• Humidity: 10-90% non-condensing

Features

• SIP Server and SIP Trunk supported
• SIP Peer Mode supported
• Calling Type: VoIP to GSM, GSM to VoIP
• GSM Ports Group Manage, VoIP Trunk Group
• Incoming /Outgoing Routing rules
• SMS Sending and Receiving
• Send Bulk SMS
• Gain Adjustment
• USSD
• PIN Modify
• Carrier Selection: Auto/Manual
• Balance Alarm
• Caller ID/CLIR
• Black List
• Hotline
• Call Duration Limitation
• Call Transfer
• Call Back
• Call Status Display
• Call Detail Record (CDR)
• Call Progress Tone Generation
• Call Duration Limitation for SIM Card/Single Call
• LCR (Least Cost Routing)
• Top voice quality (EFR super sound)
• SIP Response Code Switch
• Open API for SMS and USSD
• Real Open API Protocol (Based on Asterisk)
• IP Blacklist
• Network Attack Alert
• System Logs
• Web based configuration
