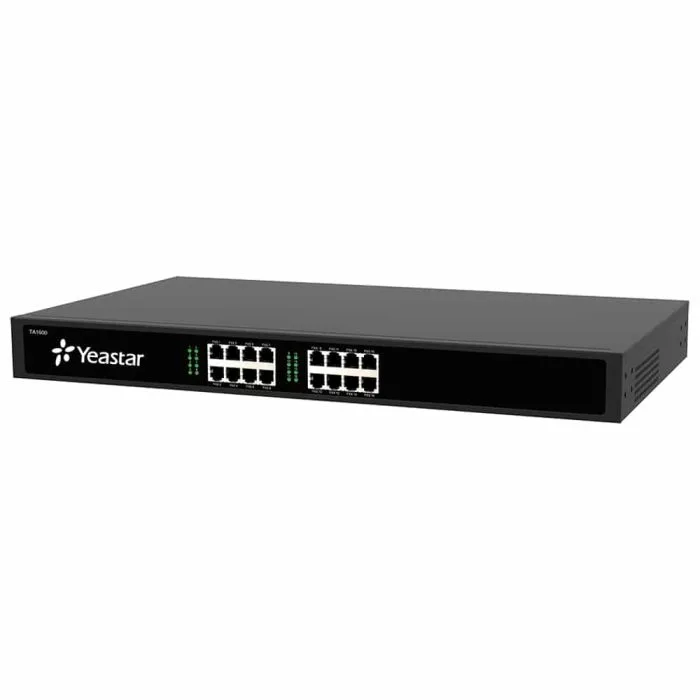

Yeastar NeoGate TA1600 16FXS Gateway

Description

NeoGate TA Analog VoIP Gateways are cutting-edge products that connect legacy telephones, fax machines and PBX systems with IP telephony networks and IP-based PBX systems. Featuring rich functionalities and easy configuration, NeoGate TA is ideal for small and medium enterprises that wish to integrate a traditional phone system into IP-based system. NeoGate TA helps them to preserve previous investment on legacy telephone system and reduce communication costs significantly with the true benefits of VoIP.

Highlights :

• 16 FXS ports
• Fully compliant with SIP and IAX2
• Flexible calling rules
• Reliable fax performance with T.38
• Provides high-quality voice compression with industry standard codecs
• Line echo cancellation for 32, 64 or 128 ms echo delays
• Web-based GUI for easy configuration and management
• Excellent interoperability with a wide range of legacy and IP equipment

Specifications :

• Number of Telephony Ports: 16
• Phone Interface: 16 x RJ11 FXS ports plus 1 x 50 pin Telco Connector
• Protocol: SIP (RFC3261), IAX2
• Transport Protocol: UDP, TCP, TLS, SRTP
• DTMF: RFC2833, SIP INFO, In-band
• Codec: G.711 a/u-law, G.722, G.726, G.729a, GSM, ADPCM, Speex
• Echo Cancellation: ITU-T G.168 LEC
• FAX over IP: T.38 and pass-through
• Signalling: Kewl Start, Loop Start
• Caller ID: BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
• Disconnect Method: Busy Tone, Polarity Reversal
• LAN: 1 (10/100Mbps)
• Network: Static IP, DHCP Client, Firewall, VLAN, DDNS, QoS, OpenVPN
• NAT Traversal: Static NAT, STUN
• Size:440 (L) mm x 250 (W) mm x 24 (H) mm
• Power Supply: AC 100~240V/50~60Hz
• Operation Range: 0° to 50°C, 32° to 104° F
• Storage Range: -20° to 65°C, -4° to 149° F
• Humidity: 10-90% non-condensing

Features :

• 3-way Conference
• Attended Transfer
• Black List
• Blind Transfer
• Call Detail Record (CDR)
• Caller ID Display or Block
• Call Forward: No Answer, Busy, All
• Call Waiting
• Call Status Display
• Do Not Disturb
• IP Blacklist
• Network Attack Alert
• Paging
• RADIUS Accounting & Login
• Real Open API Protocol (Based on Asterisk)
• Voice Prompt
• SIP Server and SIP Trunk supported
• SIP Peer Mode supported
• SNMP*
• TR-069*
• System Logs
• Web based configuration
