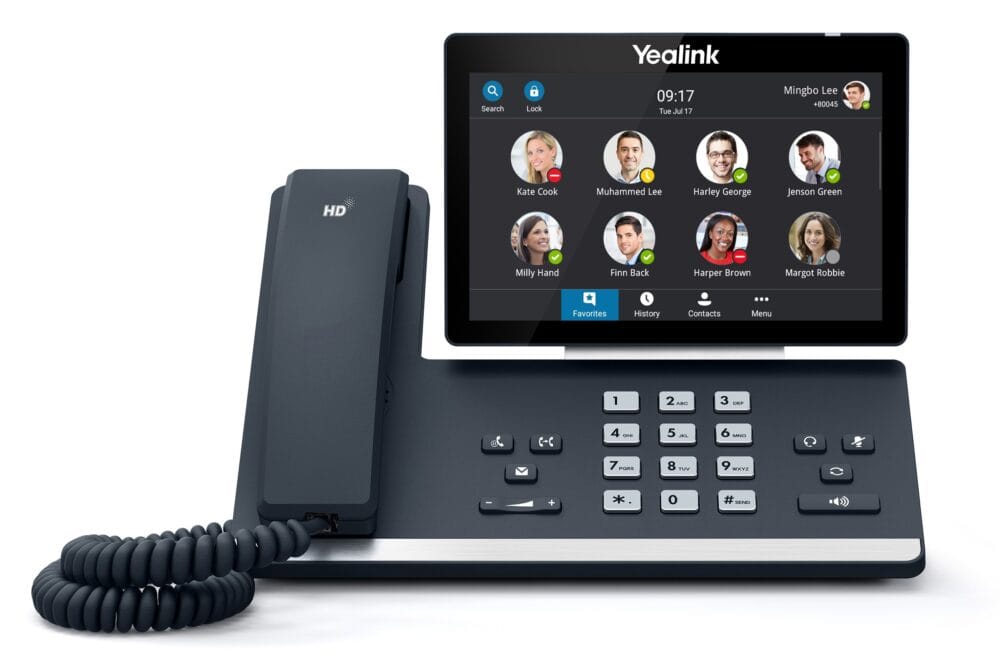

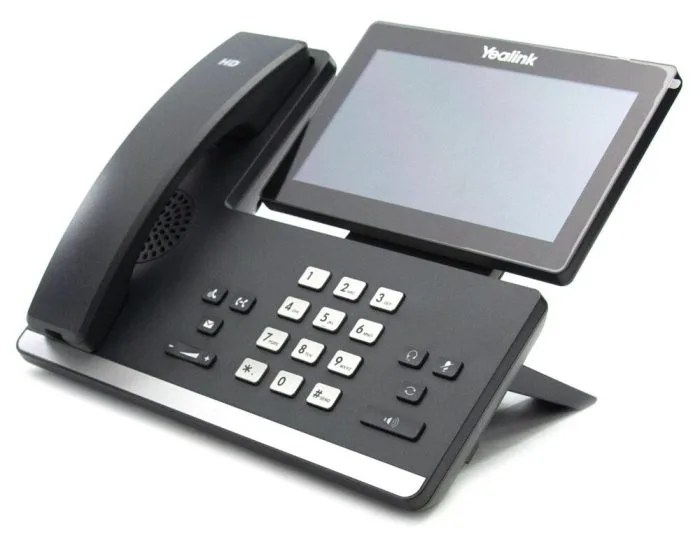

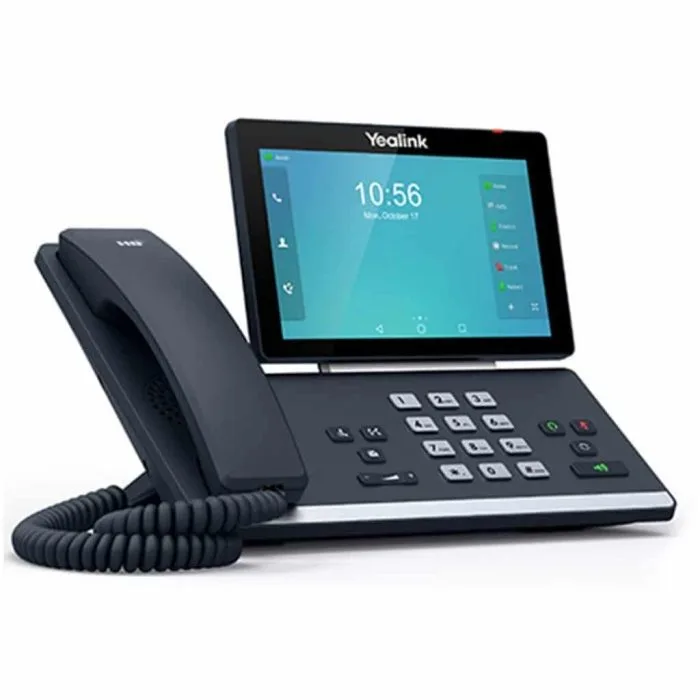

Yealink SIP-T58A Smart Media Phone

Description

• HD voice: HD handset, HD speaker
• Hearing aid compatible (HAC) handset
• Audio codec: Opus, G.722, G.722.1, G.722.1C, G.711 (A/μ), G.723, G.726, G.729AB, iLBC
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC

• 720p@30fps HD video call
• Video codec: H.264 High Profile, H.264, VP8
• Yealink CAM50 camera: 2 mega-pixel, plug and play,adjustable, with privacy shutter and LED indicator
• Vertical tilt angle adjustable: 50°
• Field of view (FOV): 70.2°
• Self view (local video preview)

• 7″ 1024×600 capacitive adjustable touch screen
• Vertical tilt angle adjustable: 48°
• 5 points multi-touch surface
• Screensaver and Wallpaper
• LED for call and message waiting indication
• Intuitive user interface with icons and soft keys
• Multilingual user interface
• Caller ID with name, number and photo

• FileManager/Email/Calendar/Camera/Gallery/Recorder/Calculator/Browser/Message
• Third party Android application support

• 16 VoIP accounts
• Call hold, call forward
• Call waiting, call transfer
• One-touch speed dial, hotline
• Mute, DND
• Group listening, emergency call
• Redial, call return, auto answer
• Direct IP call without SIP proxy
• Ring tone select/import/delete
• Set date time manually or automatically
• Dial plan, action URL/URI
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• Three-party video conferencing
• Five-party audio/video mixed conferencing
• Data import/export via Bluetooth, email, etc.

• Local phonebook up to 1000 entries
• Blacklist
• XML/LDAP remote phonebook
• Intelligent search method
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded

IP-PBX Features

• Busy Lamp Field (BLF)
• Bridged Line Appearance (BLA)
• Anonymous call, anonymous call rejection
• Remote office, hot desking, intercom, paging
• Message Waiting Indicator (MWI)
• Voice mail, call park, call pickup, music on hold
• Call completion, call recording

• Dual-port Gigabit Ethernet
• Built-in Wi-Fi (2.4GHz, 802.11b/g/n)
• Built-in Bluetooth 4.0+ EDR for
• Bluetooth headsets
• Pairing mobile devices
• 1 x USB 2.0 port (on the top of the phone)
• Yealink CAM50 camera
• 1 x USB 2.0 port (on the rear of the phone) for:
• USB flash drive
• Wired/wireless USB headset
• Color-screen expansion modules
• 1 x Security lock port
• 1 x RJ9 (4P4C) handset port
• 1 x RJ9 (4P4C) headset port
• Supports up to 3 color-screen expansion modules

• Configuration: browser/phone/auto provision
• Auto provision via FTP/TFTP/HTTP/HTTPSfor mass deployment
• Auto-provision with PnP, Zero-sp-touch, TR-069
• Phone lock for personal privacy protection
• Reset to factory, reboot
• Package tracing export, system log
• T56A&T58A&T58V unified firmware and common.cfg file
• Only the administrator can install/uninstall apps via auto-provisioning
• Setup Assistant wizard

• IPv4/IPv6
• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP/PPPoE
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• SRTP
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Adb encryption authenticated
• Digest authentication using MD5/MD5-sess
• OpenVPN, IEEE802.1X
