Overview About VoIP

An Overview about VoIP Technology,
How It Works, and How To Use It.

At Voiplid, it’s our job to keep ahead of new and intriguing technologies that
we can leverage for our customer, the broadcaster. But it’s important that as
we ride the wave of new tech, we don’t forget about the people in our industry
who have “stuff to get done”, and can’t afford to spend hours reading about
all the newest developments.
We’ve found this to be the case in recent years with the introduction of ISDN,
POTS codecs, and IP audio codecs. In each case, we decided to put together
a “primer” for those who wished to learn the knowledge needed to use these
tools effectively, but were short on time. The goal was to put together all the
vital information in a booklet that could be consumed in under an hour. The
feedback we got proved these efforts have been worthwhile.
A new disruptive technology is taking hold, and it’s now time to cut another
primer. Due to cost and necessity, broadcasters are finding they need to get
educated about Voice over IP (VoIP), and do it fast.

Here are some basics about VoIP in an easily digestible form.

VoIP provides a way for computer networks and other devices to emulate
traditional phones and phone lines. Most modern business PBX systems have
migrated to VoIP already. In some circumstances, legacy phone lines (PSTN or
POTS) are no longer available and VoIP is the only choice.
Like a traditional line, a VoIP link consists of a service provider and an end user
who owns a telephone instrument. But in this case, the provider is based in the
“cloud”. Alternately, the VoIP lines can be delivered from an upstream PBX.
The end-user gear is a specialized VoIP telephone, or software running on a
PC or mobile device that performs the same functions.
The Voiplid STAC VIP is a sample of a device designed to interface with VoIP
service. It can handle six or twelve calls simultaneously and provide the typical
screening, audio processing, and control functions expected of broadcast callin
systems. For users with less call volume, the VH2 Hybrid is a dual-channel
VoIP-to-studio interface. In addition, all Voiplid IP codecs like ACCESS and
BRIC-Link can communicate over standard VoIP protocols.

IP Concepts you need to know
If you’re already an expert on IP networking concepts in general, feel free to
skip to the next section about RTP. But here are a few basic concepts you’ll need
to master to continue learning. This is much less than a complete overview of
IP networking–only concepts directly relevant to VoIP are covered.
IP basics
IP is short for Internet Protocol, but it doesn’t always pertain to the Internet (as
in, the public version). In a nutshell, IP networking involves creating packets of
data, attaching certain headers to specify contents and assign addresses, and
applying them in sequence to some kind of network capable of transmitting
them. Physically, the network is usually Ethernet, although it may be Wi-Fi, 3G,
satellite, or lots of other mediums.
Addressing
Devices connected to an IP network are dealt an “IP Address”. Under the
IPv4 protocol (the most widely implemented), this address consists of a 32-bit
numeric value. Putting on your “binary thinking cap”, this can also be thought
of as four 8-bit bytes. A byte can have a value from 0-255, so IP addresses are
usually written as a sequence of four decimal numbers (separated by dots) like
192.168.0.25 with each integer having an upper limit of 255.
Ports
The IP address is the main identifier used to specify a destination to send packets
to within a network. But since IP compatible devices can make simultaneous
connections for different reasons (e.g. web surfing and email), a scheme is
used to designate a specific “port” on a machine, which is essentially a 16-bit
sub-address contained within the header of the packet. These ports are usually
written as simple decimal values (e.g. 80, 5060), and traffic sent to a specific
port on a machine can only be accessed by a program or service “listening”
on that port.

TCP vs. UDP
The most common types of IP traffic fall in two sub-categories, TCP/IP and
UDP/IP. The difference is important. Most web-related traffic travels via TCP,
which has built in mechanisms for integrity checking and error-correction. This
means that if the TCP “stack” within a machine has delivered a packet from
the network, the packet is guaranteed to be correct, and if lost will be resent.
It might surprise you to know that it’s not TCP that’s used for most real-time
media on the web. This is because TCP has quite a bit of overhead in terms of
data, and can easily add time delays if packets get corrupted.
VoIP and other real-time communication protocols use UDP, which is a much
simpler delivery method. There is no error correction or resending available at
the native UDP layer. UDP is sometimes referred to as the “send and pray”
method, since the network provides no guarantees of delivery of any kind. In
it’s simplicity, UDP is a better choice for real-time communications because
higher-level applications can be designed to make smart choices about error
protection vs. delay

Packets sent on IP networks will include a destination IP address/port combination, and a source IP address/port combination. These act like the destination and return address on an envelope, and allow the packets to be responded to over the network. The destination port is the most important to IT people, as it’s the one that they need to be sure is open to receiving communications. When IT folks refer to a service as “running on port x” they are referring to the destination port. We designate an IP connection via its protocol, destination IP address, and port combination in this form: e.g. UDP 192.168.0.7:5060.

LAN vs. Internet
Most of the networking you’ll be dealing with will exist within your LAN (Local
Area Network) and connections between devices within the LAN follow
ordinary rules to send packets between each other. But in the situation where
you wish to connect to a device outside the LAN (which is most common)
special rules need to be followed.

LANs have IP addressing conventions that allow a range of addresses to be
reused within the network, and prohibit those addresses not to be used again
on the public internet. This allows for many devices to site behind a router,
which has a single internet (publicly addressable) IP address, and each LAN
device to have a private, reusable IP address. By convention the address ranges
start with the digits 192.168.x.x, 172.16.x.x, or 10.0.x.x. So, for example, if a
machine tries to connect to another at an address of 10.0.0.75, it is necessarily
trying to send packets only within its LAN. The range of addressable LAN
addresses is called a subnet, and must be programmed into each machine
using a subnet mask entry.
If a machine on a LAN wishes to send packets outside the subnet, it must
communicate with a gateway (usually a router) at a fixed IP address.

Network Address Translation
The concept of how a gateway router provides translation services to the
Internet is extremely important in the field of VoIP, if only because it causes so

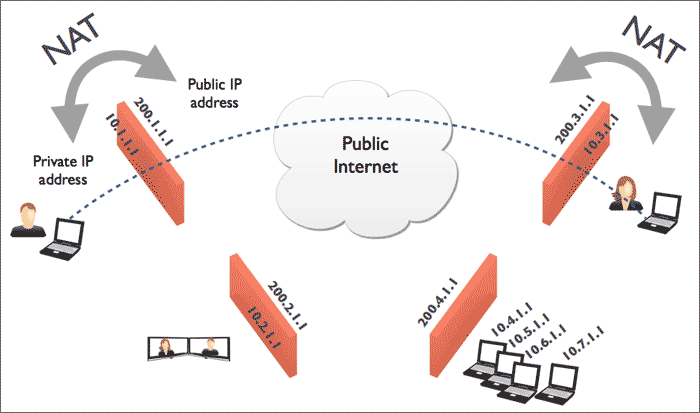

many headaches. Known as Network Address Translation (NAT), it’s easiest
to use a diagram to illustrate a typical gateway scenario describing a user on
a LAN accessing a web page at voiplid.com. For this illustration, we’ll ignore
the concepts of DNS and URLs (which aren’t particularly useful for VoIP) and
live the fantasy that the user is accessing the voiplid.com page via its public IP
address, which is (as of this writing) 64.130.2.52. In our scenario, the user has
a laptop on a LAN using the popular 192.168.0.x subnet addressing scheme,
and specifically has the address of 192.168.0.42 assigned to it.
The user will input the web page address into his browser, and the computer
will recognize the address as outside the subnet it has been programmed to
work on. So it will form a packet, whose payload consists of a request to view
the web page, and hand it to the gateway router, which is located at the local
address programmed into the laptop (192.168.0.1).
Because the router is acting as a gateway, it actually has two IP addresses. The
LAN address (192.168.0.1) is used by devices on the LAN. The WAN address
(74.94.151.151) is the address assigned by the Internet Service provider. This
address is public, in that it is addressable by every device on earth that is
connected to the Internet.

The router will record the source address of the packet (192.168.0.7), change
it to the public IP of the router (74.94.151.151), and send it along to the
destination IP address. This is so the web site knows the correct address to
which to respond.
The router will now wait for the response from the web site (it’s smart enough
to know to expect something from the destination address of the packet it
sent). It will then change the destination address of the packet to the private IP
address of the laptop before sending it along to the LAN.

In reality, NAT is more complex than this, changing port numbers as well, but
we’ve kept the concept to the bare basics to outline why NAT hurts VoIP.
NAT provides for many benefits, including address reuse and basic security.
This security exists because packets that arrive from the public Internet without
being requested from within the LAN will be discarded. But it’s this security
element that makes VoIP difficult when using NAT. The concept of placing a
VoIP call to a device behind a NAT requires that the NAT deliver unsolicited
packets from the Internet to the VoIP device.
This is a complex topic, and as we’ll see later on, NAT traversal can cause all
sorts of trouble for VoIP.

Real Time Protocol
A fundamental building block of VoIP is the Real-Time Protocol (RTP). This
is a protocol layer that exists within a UDP packet specifically designed to
transfer audio (and video) media with low delay. RTP consists of a header that
is applied directly after the UDP header in the packet, followed by a media
“payload” which consists of the actual encoded audio of a VoIP call.

The primary responsibility of the information in the RTP header is to allow the
decoder to find the proper playout sequence of the media contained in the
packet. RTP doesn’t contain any intelligence about what is actually contained
in the payload–this has to be handled by other means.
An RTP stream is unidirectional. If a duplex stream is required, an additional
independent RTP stream must be initiated in the reverse direction (This function
is handled by the Session Initialization Protocol (SIP) layer discussed later).
Finally, an RTP stream (or session, as it’s called) has a companion stream that
is initiated and travels alongside it for the duration of its life. It’s called RTCP
and is sent to the same IP address as the RTP stream, but at one port higher.
It’s used for RTP stream quality statistics but doesn’t carry any actual audio,
so it uses a small amount of data. But it’s important to know about if you’re
troubleshooting firewall or NAT issues.

Encoders
Broadcasters who’ve used POTS, ISDN or IP audio products are familiar with
the concept of encoding compression. This is the choice of encoder within
the system used to compress digital audio so it uses less network capacity.
Encoders like MP3 and AAC are common in that world.

You’ll see the VoIP industry use the term “codecs” for this function. But because
broadcast transmission devices are also termed “codecs”, we’ll reserve it to
describe hardware, and use “encoders” to describe compression algorithms.

VoIP has its own spectrum of useful encoder choices. VoIP encoders require
very low delay and reasonable computational complexity. The RTP protocol
has definitions for how to fit all popular encoder payloads into a session.

G.711
The lowest common denominator encoder in VoIP is the same one that has
been used by digital telephone networks for decades, defined as G.711. It’s a
simple way to compress audio, resulting in a network utilization of 64 Kb/s per
channel in each direction, a compression of about only 30% from the original
uncompressed stream. This is considered the highest amount of allowable data
for a single call by modern standards, and it can add up quickly as multiple
calls are handled on the same network. To its benefit, the encoder requires
virtually no computer power to compress or decompress.
G.711 is limited in terms of audio fidelity by the choice of its audio sampling
rate. Calls using this encoder usually provide only 300 Hz-3 KHz audio
response, resulting in the familiar thin sound of phone call, especially when
put “on the air”.
G.711 actually has two variants, one used mostly in North America (μ-law),
and another used elsewhere (a-law). These are defined by the names of the
tables used within the encoders to compress. All Voiplid codecs and VoIP
devices support G.711.

G.729a
Because G.711 is a bit old and primitive, an encoder has been developed to
deliver equivalent audio quality while using a fraction of the network bandwidth.
G.729a implements a more aggressive compression algorithm, resulting
in network usage of around 8 Kb/s per channel, or about 1/8th the data of
G.711. This can be very helpful for avoiding excessive network congestion. Of
course, equivalent audio means the same limited fidelity as G.711.
This encoder is sometimes simply referred to as G.729 (without the a), but is
equivalent to the user. Another variant, G.729ab, is sometimes available that
can detect when voice is present and squelch the data stream during periods
of silence, further conserving network bandwidth. Voiplid STAC VIP supports
G.729a.

G.722
Familiar to ISDN broadcasters, G.722 is an encoder designed to increase the
audio fidelity of phone calls. Using the same network bandwidth as G.711 (64
Kb/s each way), G.722 more than doubles the audio spectrum conveyed by
the call, making the caller sound much more natural and identifiable. The 7
KHz spectrum carried by G.722 covers the majority of human voice energy,
excluding only the most sibilant sounds in speech.
G.722 is the most common encoder for calls that are classified as “HD Voice”
in the VoIP world. All Voiplid codecs and VoIP devices support G.722.

Opus
Efforts are increasing at combining the worlds of VoIP and web services. Many
web audio services have standardized on Opus, an encoder that delivers nearCD
quality audio with low delay. As these efforts continue, users can expect
to find more support for the Opus codec in VoIP devices and networks. All
Voiplid codecs and the STAC VIP phone system support Opus.

Other encoders
A large spectrum of VoIP-ready encoders have been introduced in the past
decades, each having proponents and particular advantages for certain
applications. These include iLBC, iSAC, G.722.1, G.722.2, G.726, VMR-WB,
SILK and AMR-WB+. For the most part, we expect the industry to support only
the four encoders outlined above in most equipment and networks.

Session Initialization Protocol
The piece that ties RTP sessions and encoders together, and gives VoIP its
telephone-like qualities, is another completely separate connection between
devices called the SIP. You’ll see the term SIP thrown around in place of VoIP
in many places (SIP Phones, SIP PBXs). It’s a very powerful specification
and is being used for an increasing number of applications besides VoIP, like
compatibility standards between broadcast IP hardware codecs, studio-style
AoIP installations, and real-time web audio and video. It’s becoming such a
vital element of so much new technology, it’s a very valuable thing to be expert in.

SIP connections can be made in two primary ways–registered and unregistered.
In unregistered mode, a SIP channel is opened between devices at the time
a call is placed. In registered mode, a SIP channel is constantly maintained
between a SIP client (like a studio talkshow system) and a SIP server (like that
at an Internet Telephone Provider). Most VoIP users will only use registered
mode, so that’s what we’ll focus on going forward.

The SIP protocol can be used in more than one link in a VoIP chain. The best
example would be a purely IP PBX. In this case, the PBX maintains a SIP
channel to an Internet Telephone provider on its WAN port. It also maintains
several SIP connections over its LAN to telephone extensions. Because the
protocol used in these links is identical, it provides for a lot of flexibility. For
example, if need be, the telephone extensions could register directly with the
provider, bypassing the PBX entirely.

IP-PBX

It’s important to understand that the SIP protocol does not carry any actual
voice between devices– it simply instructs devices to create separate RTP
sessions in each direction. RTP streams are created and destroyed based on
commands contained in SIP messages when calls are made or received.
Sometimes the SIP channel is connected to a server that is removed from
the RTP sessions entirely. This would likely be the case when two SIP devices
are registered to the same (or sometimes even different) providers. The SIP
channel would instruct the devices to create RTP sessions between them,
rather than to the provider. This is known as the “SIP Triangle”.

But more commonly, a SIP device is interested in making and receiving calls
to and from the “old fashioned” public switch telephone (PSTN) or “plain old
telephone” (POTS) network, whether wired or cellular. In this case both the SIP
channel and the RTP sessions are made to a server at the Internet Telephone
Provider, and the provider acts as a gateway for the voice call to the “legacy
network”. The user would be delivered a “real” phone number (DID for Direct
Inward Dial) and the provider would handle all the necessary VoIP <-> PSTN
conversions. We’ll focus on this scenario from here on.

SIP Details
The technical details of SIP are widely available on the web for further research.
But essentially, commands and formats are provided to invite users to a call,
accept calls, end them, and reject them. SIP also provides a mechanism to
register and authenticate with a server.
Another useful function in SIP is encoder negotiation. The SIP protocol can
inform users of which encoders are supported on each end of a session and
in which priority. In this way, it’s easy to make decisions about which encoder
to choose that will be in common with both ends, and to reject calls if no
common encoder is found.

Like RTP sessions, the SIP channel utilizes the UDP protocol by default. There
is a specific port defined, 5060, as the default “well-known” port over which
SIP operates, although it can usually be configured to be different.
A single SIP channel can manage multiple RTP sessions simultaneously. In this
way, only a single account needs to be registered with the Internet Telephone
Provider and a single SIP channel maintained, but multiple VoIP calls can
be run simultaneously. Whenever a call is initiated or dropped, a pair of RTP
sessions is created or destroyed on the fly for each call.

Issues with the SIP channel
The SIP channel generally has the fewest issues, since it’s usually originated
from the user end of the link. This means NAT routers on the user end will
generally allow this outgoing traffic to pass, and allow the response traffic
(from the provider) back in. But if a network is heavily firewalled in a way that
blocks outgoing access to UDP 5060, this channel will never be created and
the user cannot register with the provider.
Also, although we have described the SIP connection as “always active”, there
are periods of inactivity on the link when no calls are being set up or ended.
In order to receive information about new incoming calls from the provider,
the user end must keep the SIP connection (or “binding”) open through the
NAT router to prevent it from terminating the binding and blocking incoming
traffic. It does this by sending periodic updates even when no changes are
being made to any calls. The interval of these updates is usually adjustable,
but must be shorter than the timeout value the router takes to shut down any
unused bindings.

Where am I?
According to the SIP standard, the user device will inform the provider of its
IP address (over the SIP signaling connection), and the provider will “push”
the RTP session containing the incoming voice to that address. But devices
on LANs often don’t know what their “public” address is, only the private one
assigned to them on the LAN. If the provider tries to initiate a stream to that
address, it will go nowhere.
Many VoIP providers install a “cheat” here that will look at the user’s IP address
and determine if it looks “private”. If so, they will ignore it and send the RTP
stream to the destination address of the RTP session they receive.
If the cheat isn’t implemented, user devices have a way of looking up their
public IP address via a protocol called STUN. This protocol can usually be
enabled within the user’s equipment configuration. If enabled, the device will
look to a STUN server out on the public Internet, and query its own address.
It will then use that public address to populate the “from” field in the SIP
handshake.

Please don’t block me, bro!
Even if the provider gets the correct IP address of the user, there’s plenty that
can go wrong. Remember, SIP involves creating extra RTP “channels” in each
direction to carry the actual voice. The ports used on each end are negotiated
over the SIP signaling channel for each call. There aren’t any “standard wellknown”
ports used for these connections. And there can be many of them
active on different ports if lots of simultaneous calls are happening.
As far as the user’s router or firewall is concerned, a new RTP session is trying to
make it through its security layer. It’s not aware this session has been requested,
so it’s blocked by default. This usually results in a one-way connection, where
no audio can be heard on the SIP user end of the call.

ALG to the rescue
This scenario has become common enough that router and firewall
manufacturers have started to address it. The solution is call SIP ALG (for
application layer gateway) and has been built into the firmware of most modern
devices. It may be on or off by default. And the quality of how it functions may
vary–early implementations sometimes did more harm than good.
But a properly functioning ALG will listen to your SIP channel, and gain an
understanding of which RTP sessions are being created on which ports. It will
then allow the incoming session through.

In reality, an ALG may often take quite a bit of license with your SIP connection.
It can rewrite many of the SIP fields in order to comply with its rules, so the IP
and port information getting to the service provider may actually be completely
different than those sent by the device. As long as it has the intelligence to
open the proper ports, this will usually work fine.

It’s even possible that your SIP connection is being processed by more than one
ALG, as in the instance of a separate router and firewall on the connection.
Of course in this scenario, the possibilities for errors compound. Sometimes it’s
best to disable unnecessary ALGs in the link. Unfortunately, diagnosing these
issues require analyzing packet captures. Luckily, SIP is a well-known protocol
that can be easily deciphered by packet capture systems.

PBXs
So far we’ve discussed SIP connections to outside or “cloud” VoIP providers.
But many times, the user already has a SIP PBX on premises, which already
connects to the public telephone network by VoIP or legacy means, like analog
lines or T1s. Since most modern PBXs talk SIP to their extensions, they just
need to tie a SIP-compatible device (like a codec or hybrid) to the PBX, and
allow the PBX to decide how to route calls to the device.
As mentioned before, the SIP protocol used in this scenario is the same. The
device will register and maintain a SIP connection to the PBX, and the PBX
will inform the device of incoming calls. RTP channels will be created when
required between the SIP device and the PBX. This will usually be successful,
since the LAN environment is less reliant on routers, subnets and firewalls to
block the RTP channels.

Registering with a SIP Server or PBX
The process of registering a device to a SIP provider, whether it’s in the “cloud”
or at your location, is usually simple. Much like registering an email client with
a mail server, the VoIP client (the VoIP hardware) must know the location of
the server, and a username/password combo with which to register. The server
location can be in the form of an IP address, or a URL.
Some servers with more complex arrangements may require more information
to help choose options. There may be separate settings for your SIP Proxy
server, your SIP domain, and your SIP registration server. There may be
choices for encoder support, auth username (an additional credential used for
authentication), and caller ID options. For the most part, any essential info that
needs to be programmed will be delivered from your provider (or in the case
of a PBX, your Telco department) and you can set your VoIP device with the
parameters that match, and ignore the others.

Making and Receiving calls
Once registered correctly with a SIP server, incoming calls will be routed to
your SIP device based on the calling plan set up with your provider or PBX.
Whether it’s the DID line(s) assigned to you by the provider, or an incoming
trunk attached to your PBX, a “ring” on the line will trigger the server to notify
your device of a call request using the SIP protocol. Your device can accept or
reject the call. If you accept the call, an RTP channel is created to your device
each way.
Outgoing calls just reverse the process. The SIP device sends an outgoing
call request to the server, which attempts to complete the call. Call progress
messages will be sent to your SIP device from the server, which may translate
them to familiar tones like ringing and busy. On call completion, the server will
create the RTP channels in the same way as for incoming calls.

Hunting
Of particular interest to broadcasters who take lots of calls simultaneously
is hunting behavior, or the way the system behaves toward simultaneous
incoming calls. Keep in mind, when an incoming call is in the “ringing” state,
there are only status messages exchanged over the SIP connection–no actual
audio is being transferred. The RTP audio channels are only created after the
call is answered.

Only one SIP connection needs be open for multiple voice channels to be
created. Your VoIP provider or PBX will be programmed to allow a designated
number of simultaneous voice channels, and any further incoming calls will
be rejected there. By default, most multi-channel VoIP gear will “hunt” any
second, third etc. call to the next “line” on the device. In this way hunting is
inherent. If more than the supported number of calls is requested to the VoIP
device, it will reject them in the same way as the provider does, and no RTP
channel will open for these excess calls.
Alternately, it’s possible to set up a separate SIP account for each “line” on the
SIP device, and this account should be capable of creating only one “channel”
at a time. In this case, it’s the responsibility of the provider or PBX to sort the
hunting arrangement and notify the proper account about incoming calls.

Choke Lines
Another topic of interest to broadcasters is choke lines, the specially conditioned
telephone trunks designed not to fail under loads of thousands of incoming
calls (e.g. for contests). In the PBX scenario, choke lines can easily be used as
the trunks that feed the PBX, and very little changes.
When using a cloud provider, it’s important to notify them about potential peak
call volume to avoid overloading their systems. But cloud providers are usually
equipped to provide service to high-volume nationwide call centers, so they
can usually implement techniques to throttle large amounts of calls without
impacting overall service.

If you have any questions about this article “Overview About VoIP” please feel free to contact us.
